Ever wonder what’s inside the 1,000-pound heart of an electric vehicle? The average EV battery contains enough lithium to make 10,000 smartphones and enough cobalt to forge 6,000 wedding rings. Yet most drivers never see how these engineering marvels come together.
This post reveals the EV battery journey that transforms raw earth elements into powerful energy cells capable of propelling a two-ton vehicle hundreds of miles.
EV batteries are made through a precise sequence of mining, refining, cell manufacturing, and module assembly—each step requiring specialized expertise and technology.
The process starts in places most people never think about, but the environmental implications reach everyone. So what happens in those gigafactories that’s so revolutionary? And why is the battery production bottleneck keeping more EVs off the road?
Essential Raw Materials for EV Batteries
A. Lithium: The Lightweight Energy Carrier
Lithium sits at the heart of EV battery manufacturing process. This silvery-white metal is prized for its exceptional properties – it’s the lightest metal on the periodic table and offers outstanding electrochemical potential. These qualities make lithium perfect for electric vehicle battery materials.
Most lithium comes from two main sources: hard rock mining (primarily in Australia) and brine extraction from salt flats (mainly in South America’s “Lithium Triangle” spanning Chile, Argentina, and Bolivia). The extraction methods differ dramatically:
- Hard rock mining: Crushing lithium-containing rock, then using chemical processes to isolate the lithium
- Brine extraction: Pumping mineral-rich water into large evaporation ponds, then processing the concentrated solution
Once extracted, lithium undergoes conversion into lithium carbonate or lithium hydroxide – crucial compounds for battery production. The growing demand for EVs has triggered massive expansion in lithium mining operations worldwide, raising important questions about sustainability and supply chain resilience.
B. Cobalt and Nickel: Power and Stability Components
Cobalt and nickel serve critical functions in lithium-ion battery production. Cobalt prevents battery overheating and provides structural stability, while nickel increases energy density and extends driving range.
The Democratic Republic of Congo supplies approximately 70% of global cobalt, often from mines with serious ethical concerns including child labor and unsafe working conditions. This reality has pushed many manufacturers to reduce cobalt content in their battery formulations.
Nickel exists in different grades, with Class 1 nickel being most suitable for EV batteries. Indonesia, Philippines, and Russia lead global nickel production, with supply constraints becoming increasingly apparent as EV adoption accelerates.
C. Graphite: The Crucial Anode Material
Graphite constitutes the anode (negative electrode) in virtually all commercial lithium-ion batteries. This crystalline form of carbon provides the structure where lithium ions rest during charging. Approximately 10-15 times more graphite than lithium goes into a typical EV battery.
Natural graphite requires extensive purification before reaching battery-grade quality. Synthetic graphite, manufactured from petroleum coke, offers higher performance but comes with greater environmental impact and cost. China currently dominates graphite processing, accounting for over 80% of global supply.
D. Rare Earth Elements: Enhancing Battery Performance
Despite their name, rare earth elements aren’t particularly rare geologically. However, they’re dispersed in small concentrations, making extraction challenging and environmentally intensive.
Elements like neodymium, dysprosium, and praseodymium don’t typically go directly into the battery cells but are vital for EV motors and power electronics. These materials enable the creation of powerful permanent magnets essential for efficient electric motors.
China controls approximately 85% of global rare earth processing capacity, creating significant supply chain vulnerabilities for EV manufacturers worldwide. This concentration has prompted efforts to develop alternative battery technologies and diversify supply sources to ensure sustainable battery production moving forward.

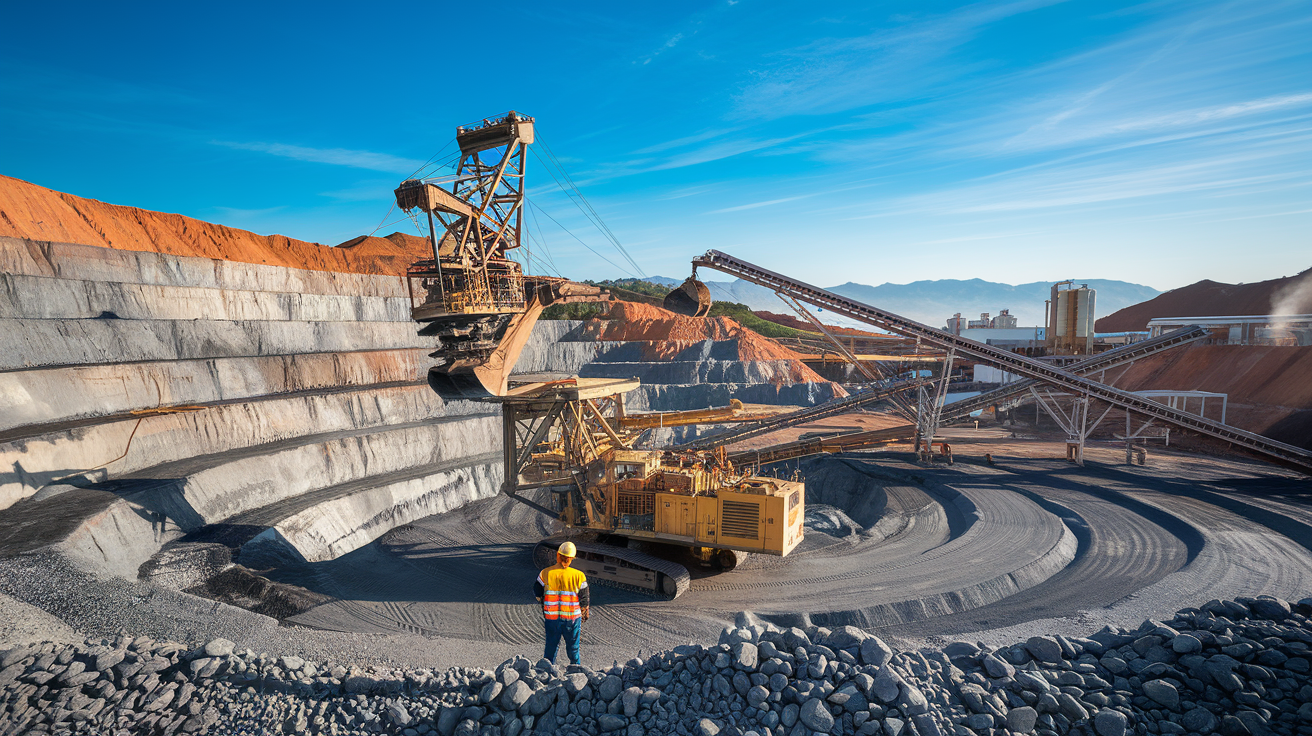

Mining and Extraction Processes
A. Sustainable Mining Practices for Battery Materials
The EV boom has put a spotlight on mining practices as demand for battery materials skyrockets. Forward-thinking mining companies are now implementing responsible methods that minimize environmental footprints while meeting the growing needs of the EV battery supply chain.
Responsible miners now employ selective mining techniques that target specific mineral deposits rather than removing excessive amounts of earth. This precision approach reduces waste and energy consumption significantly. Another game-changer? Water recycling systems that cut freshwater usage by up to 80% in some operations.
Best practices now include:
- Real-time monitoring of environmental impacts
- Restoration of mining sites to their natural state
- Community engagement programs that provide economic benefits to local populations
- Third-party certification of ethical sourcing
B. Brine Extraction vs. Hard Rock Mining for Lithium
When it comes to sourcing lithium for EV batteries, two main methods dominate the industry:
| Brine Extraction | Hard Rock Mining |
|---|---|
| Pumps mineral-rich water from underground reservoirs | Extracts lithium from rocks like spodumene |
| Lower energy requirements | Higher lithium recovery rates |
| Longer processing time (12-18 months) | Faster production cycle (days to weeks) |
| Lower production costs | Higher capital investment |
| Primarily used in South America’s “Lithium Triangle” | Common in Australia, China, and Canada |
Brine extraction works by pumping lithium-rich water into large evaporation ponds where the sun concentrates the solution over months. This solar-powered approach uses fewer chemicals but requires vast land areas.
Hard rock mining delivers lithium faster but demands more energy and produces more waste. However, recent innovations in hard rock processing are cutting energy usage by almost 30%.
C. Refining Raw Materials for Battery-Grade Quality
Raw materials don’t just go straight from the ground into EV batteries. They undergo intensive refining processes to reach 99.5%+ purity levels required for high-performance battery cells.
The refining process transforms crude lithium, cobalt, nickel, and manganese into battery-grade materials through:
- Multi-stage chemical processing
- Precipitation and filtering techniques
- Heat treatment and calcination
- Advanced separation technologies
For lithium specifically, the journey from brine or rock to battery-grade lithium carbonate or hydroxide requires removing impurities like magnesium, boron, and iron that would otherwise compromise battery performance and safety.
D. Environmental Impact and Mitigation Strategies
The environmental footprint of mining battery materials is substantial but getting smaller through innovation. Water usage remains a major concern, particularly in lithium extraction where up to 500,000 gallons of water may be used per ton of lithium.
Smart mitigation strategies include:
- Direct lithium extraction technologies that reduce water needs by up to 70%
- Dry stacking of tailings instead of wet tailings dams
- Renewable energy powering mining operations
- Recycling of process waters and chemicals
- Biodiversity offset programs in mining regions
E. Supply Chain Challenges in Material Sourcing
The EV battery supply chain faces significant hurdles that manufacturers must navigate carefully. Geographic concentration of materials presents a major challenge – over 70% of cobalt comes from the Democratic Republic of Congo, while China processes approximately 80% of the world’s raw battery materials.
This concentration creates:
- Price volatility for key materials
- Geopolitical vulnerabilities
- Logistical bottlenecks
- Ethical sourcing concerns
Battery manufacturers are responding by diversifying supply chains, developing alternative battery chemistries that use more abundant materials, and creating transparent tracking systems that verify ethical sourcing from mine to finished battery pack.
Long-term solutions include investing in battery recycling infrastructure, which could supply up to 25% of lithium needs by 2040, and developing new mining projects in politically stable regions.
Battery Cell Manufacturing
Electrode Production: Creating the Power Generators
Battery cell manufacturing starts with electrode production – the heart of any EV battery. The process involves coating metal foils with specially formulated slurries containing active materials. For cathodes, manufacturers mix lithium compounds (like lithium nickel manganese cobalt oxide or NMC) with conductive additives and binders. These materials are precisely measured, mixed into a slurry, and applied to aluminum foil in ultra-thin, perfectly uniform layers.
Anodes follow a similar process, typically using graphite mixed with silicon or other carbon materials coated onto copper foil. The coated foils then go through drying ovens where solvents evaporate, leaving behind the active material layers. After drying, massive calendering machines compress these coated foils to exact thickness specifications, ensuring optimal energy density.
The stakes are high during this stage – even microscopic coating inconsistencies can lead to performance issues or safety hazards down the line.
Electrolyte Preparation: The Energy Transfer Medium
The electrolyte serves as the critical pathway for lithium ions to shuttle between electrodes. Most EV batteries use liquid electrolytes – complex mixtures of lithium salts dissolved in organic solvents. These formulations are highly proprietary, with manufacturers constantly tweaking additives to improve performance, safety, and longevity.
Electrolyte preparation demands exceptional purity and precision mixing under controlled atmospheres. The slightest contamination can trigger unwanted chemical reactions that degrade battery performance or create safety risks. Advanced manufacturers use automated systems in clean rooms to blend these sensitive formulations.
Solid-state electrolytes represent the cutting edge in battery technology, promising higher energy density and improved safety, though mass production challenges remain significant.
Cell Assembly: Bringing Components Together
With electrodes and electrolytes ready, assembly begins. The electrodes are precisely cut into sheets and layered with separators – microporous membranes that prevent physical contact between cathode and anode while allowing ion flow. These layered stacks are either wound into cylindrical/prismatic shapes or stacked flat for pouch cells.
The assembled cells move to vacuum chambers where they’re filled with electrolyte. This critical step requires exact volumes under controlled pressure and temperature. The cells are then sealed using specialized welding or heat-sealing techniques, creating an airtight package.
Initial charging (formation) follows, during which the battery undergoes controlled charge-discharge cycles that establish the protective SEI (Solid Electrolyte Interphase) layer crucial for long-term stability.
Quality Control Measures in Battery Production
Quality control runs throughout the entire manufacturing chain. X-ray systems scan for internal defects, while precision instruments measure thickness variations down to microns. Temperature sensors monitor heat signatures that might indicate manufacturing flaws.
Automated testing systems perform electrical tests on every cell, checking capacity, internal resistance, and self-discharge rates. Cells undergo stress testing in environmental chambers that simulate extreme conditions. Advanced manufacturers employ machine learning algorithms that analyze manufacturing data to spot subtle patterns indicating potential quality issues.
Only cells meeting rigorous standards advance to the battery pack assembly stage, where they’re electronically connected, equipped with thermal management systems, and encased in protective housings.
Battery Pack Design and Assembly
From Individual Cells to Complete Modules
Battery pack assembly starts with individual cells – the building blocks of EV batteries. These cells, produced earlier in the manufacturing process, are arranged into modules following specific configurations that optimize energy density and structural integrity.
Manufacturers typically use either prismatic, cylindrical, or pouch cells depending on vehicle specifications. Tesla favors thousands of small cylindrical cells, while other manufacturers opt for fewer but larger prismatic or pouch cells. Each approach offers different tradeoffs in cooling efficiency, packaging density, and manufacturing complexity.
The cells are connected using busbars or wire bonding to create electrical pathways. This precision work requires automated assembly systems that can handle delicate connections while maintaining perfect alignment and consistent contact pressure.
Thermal Management Systems for Optimal Performance
EV batteries generate substantial heat during charging and discharging. Without proper thermal management, performance degrades and safety risks increase. Modern EV battery packs incorporate sophisticated cooling systems using air, liquid, or phase-change materials.
Liquid cooling dominates high-performance EV designs, with coolant channels running between cells to maintain optimal temperature ranges (20-40°C). This prevents both overheating during fast charging and performance loss in cold weather.
Some cutting-edge designs incorporate heat pumps that can both cool the battery in summer and warm it in winter, maximizing range in all conditions while minimizing energy consumption.
Battery Management Systems: The Brain of EV Batteries
The Battery Management System (BMS) constantly monitors and controls every aspect of battery operation. This sophisticated computer system tracks:
- Cell voltage and temperature (individually for each cell)
- State of charge and state of health
- Charging and discharging rates
- Power demands from vehicle systems
The BMS balances cells to prevent any single cell from overcharging or over-discharging, extending battery life significantly. It also communicates with vehicle systems to optimize power delivery based on driving conditions and driver behavior.
Safety Features and Fail-Safe Mechanisms
Safety remains paramount in EV battery design. Multiple redundant safety systems protect against thermal runaway and other potential hazards:
- Physical cell separation with fire-resistant barriers
- Fuses and circuit breakers that isolate damaged sections
- Pressure relief vents that prevent catastrophic ruptures
- Robust enclosures designed to contain damage
- Automatic disconnection systems for collision detection
These systems work together to ensure that even if individual cells fail, the failure remains contained and passengers stay protected.
Testing Protocols for Performance Verification
Every completed battery pack undergoes rigorous testing before installation. These tests validate performance, durability, and safety under extreme conditions:
- Cycle testing simulates years of charging/discharging
- Vibration and shock testing mimics road conditions
- Environmental chamber testing at temperature extremes
- Electrical performance verification across operating ranges
- Isolation and leakage current testing for safety compliance
Only after passing these comprehensive tests does a battery pack get cleared for vehicle installation, ensuring reliability throughout the expected 8-15 year battery lifespan.
Innovations Transforming Battery Production
Solid-State Batteries: The Next Generation
The EV battery world is buzzing about solid-state technology – and for good reason. Unlike conventional lithium-ion batteries that use liquid electrolytes, solid-state batteries employ solid electrolyte materials. This seemingly simple change creates a domino effect of benefits: higher energy density, faster charging, longer lifespan, and significantly improved safety profiles.
Current lithium-ion EV batteries face limitations with energy density reaching plateaus around 300 Wh/kg. Solid-state alternatives promise to push beyond 500 Wh/kg, potentially doubling driving ranges without increasing battery size or weight.
Major automakers aren’t just watching from the sidelines. Toyota has filed over 1,000 patents related to solid-state technology. BMW partnered with Solid Power while Volkswagen backed QuantumScape with substantial investments exceeding $300 million.
Reducing Dependency on Rare Materials
Critical materials like cobalt and nickel create supply bottlenecks in traditional EV battery manufacturing. The industry’s response? Developing chemistries that minimize or eliminate these problematic ingredients.
LFP (lithium iron phosphate) batteries have gained significant market share, especially in standard-range vehicles and energy storage applications. These batteries contain no cobalt or nickel, substantially reducing raw material costs and supply chain vulnerabilities.
Several manufacturers have pioneered manganese-rich cathodes that slash nickel content by up to 75% while maintaining performance standards. Tesla’s announced 4680 cells incorporate these innovations, demonstrating the shift toward more abundant materials is already underway.
Recycling and Circular Economy Approaches
Battery recycling has evolved from basic material recovery to sophisticated “urban mining” operations. Modern recycling facilities can recover up to 95% of critical battery materials, creating a closed-loop system that reduces dependency on freshly mined resources.
Battery manufacturers increasingly design products with recycling in mind – using water-soluble adhesives, standardized cell formats, and easy-disassembly techniques. This “design for recycling” approach dramatically improves recovery rates and processing economics.
Some interesting models emerging:
- Battery-as-a-service programs where manufacturers maintain ownership and responsibility for end-of-life recycling
- Second-life applications repurposing vehicle batteries for grid storage before final recycling
- Modular design allowing for replacement of individual components rather than entire battery packs
Manufacturing Efficiency Improvements
Production breakthroughs have slashed EV battery costs from over $1,000/kWh in 2010 to under $130/kWh today, with $100/kWh (the magic number for price parity with combustion vehicles) now within reach.
Advanced manufacturing techniques driving these improvements include:
- Dry electrode coating eliminating energy-intensive solvent drying steps
- Cell-to-pack designs removing structural components and increasing energy density
- Gigafactory-scale operations achieving unprecedented economies of scale
Automation plays a crucial role, with modern battery lines containing over 70 fully automated steps. Industry leaders employ AI-driven quality control systems capable of detecting microscopic flaws invisible to human inspectors, dramatically reducing defect rates.
From Factory to Vehicle Integration
Transportation and Storage of Completed Batteries
Once EV batteries roll off the production line, they enter a critical phase requiring specialized handling. Battery packs are substantial investments, often worth $10,000-$15,000 each, necessitating careful transportation protocols.
Manufacturers use custom-designed shipping containers with shock absorption systems to protect these sensitive components. Temperature control remains vital even during transit, with specialized climate-controlled trucks maintaining optimal conditions between 15-25°C. Humidity control systems prevent moisture accumulation that could compromise electrical components.
Storage facilities employ similar environmental controls, with added safety features like fire suppression systems using specific extinguishing agents designed for lithium-ion battery fires. Battery management systems remain active during storage, performing regular health checks and maintaining appropriate charge levels—typically keeping batteries at 30-50% capacity to minimize degradation.
Vehicle Integration Engineering Challenges
Integrating massive battery packs into vehicle designs creates significant engineering hurdles. Weight distribution demands precise placement to maintain handling characteristics, with batteries typically positioned low in the chassis to lower the center of gravity.
Thermal management represents perhaps the biggest challenge. Battery packs generate substantial heat during charging and discharging cycles, requiring sophisticated cooling systems:
| Cooling Method | Applications | Advantages |
|---|---|---|
| Air cooling | Entry-level EVs | Lower cost, simpler design |
| Liquid cooling | Premium EVs | More efficient, enables fast charging |
| Immersion cooling | Emerging technology | Highest thermal efficiency |
Crash safety engineering ensures battery pack integrity during accidents, with reinforced structures protecting cells from puncture or compression. Modern designs incorporate crumple zones specifically engineered to direct impact forces away from battery components.
Performance Testing in Real-World Conditions
Before hitting the road, completed battery systems undergo rigorous testing regimens. Manufacturers subject packs to extreme temperature testing from -30°C to +50°C to verify performance across all climate conditions. High-current load testing simulates everything from gentle cruising to maximum acceleration, while vibration testing ensures durability over rough road conditions.
Testing protocols typically include accelerated aging procedures to predict long-term performance. Companies invest in specialized testing facilities with thermal chambers capable of replicating diverse global climates. Full-vehicle integration testing evaluates how battery systems interact with motors, inverters, and onboard charging systems.
Battery Lifespan and Degradation Factors
EV batteries experience gradual capacity loss over their operational life, influenced by several factors. Fast charging can accelerate degradation by generating excess heat and stress on cell chemistry. Deep discharge cycles below 10% similarly strain battery components, while exposure to extreme temperatures significantly impacts longevity.
Sophisticated battery management systems counteract these effects by implementing protective measures. Most modern EVs limit fast charging speeds when the battery reaches high temperatures and restrict maximum charging to 80-90% during daily use to extend lifespan.
Under optimal conditions, today’s EV batteries retain 80-85% capacity after 100,000 miles, with warranty coverage typically guaranteeing minimal degradation for 8-10 years. Battery technology continues advancing rapidly, with new chemistries promising longer lifespans and improved resilience to degradation factors.
Shaping the Future of Transportation
The journey of EV batteries—from mining essential raw materials like lithium, cobalt, and nickel to the complex manufacturing processes of cells and battery packs—represents a remarkable feat of modern engineering. These intricate production systems, designed for maximum efficiency and safety, culminate in seamlessly integrated power sources that drive the electric vehicles transforming our roads.
As battery technology continues to evolve, innovations in sustainable mining practices, advanced manufacturing techniques, and improved battery designs are extending driving ranges while reducing environmental impact. The rapid growth of this industry signals a profound shift in transportation, with each advancement bringing us closer to a cleaner, more sustainable future where electric mobility becomes the standard rather than the exception.
